Homeowner/Landowner Chainsaws

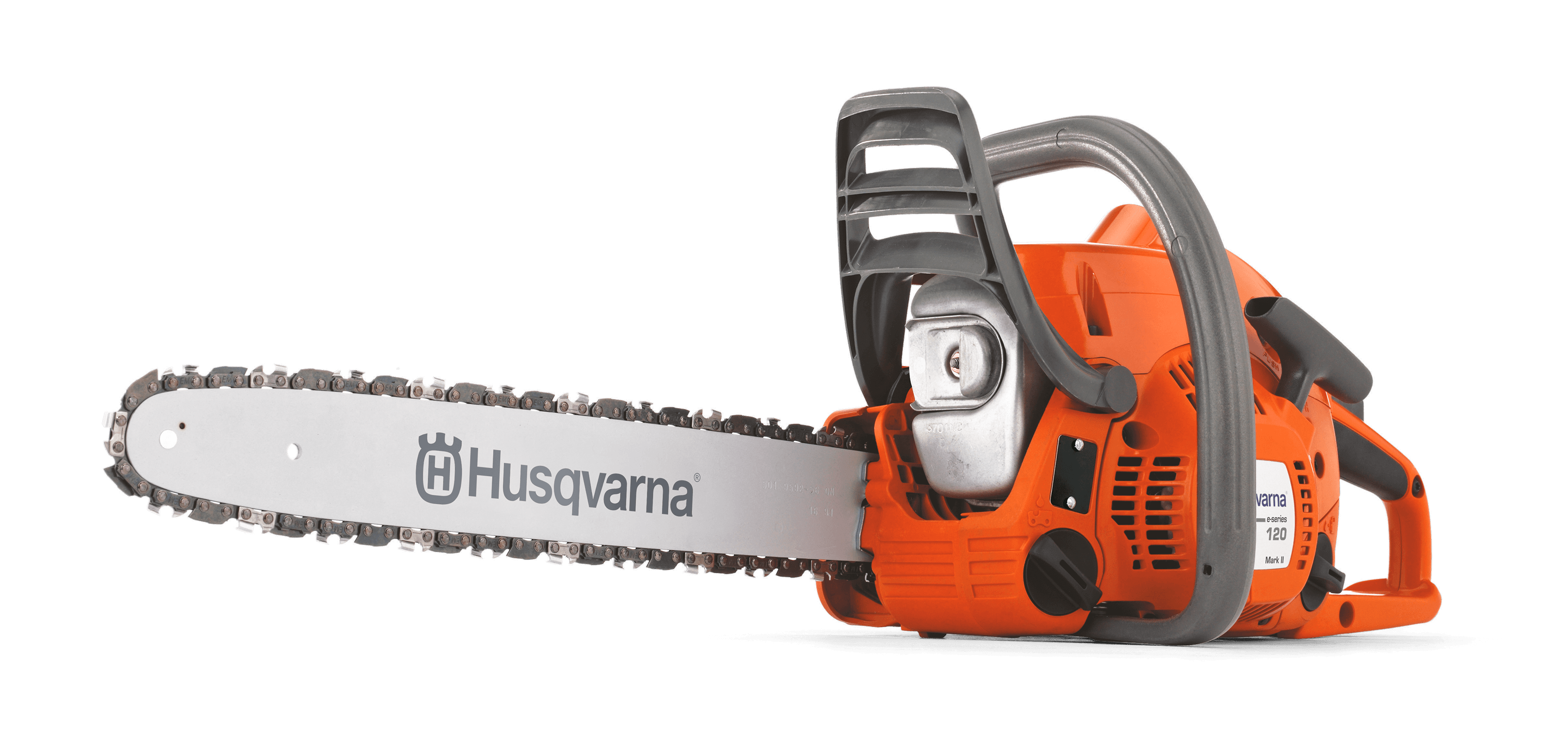

120e Mark II
Loading...Rec. retail price incl. GST SKU: 967861911- Output shaft power1.4 kW
- Cylinder displacement38.2 cm³
Product description
Easy to use, easy to start, all-round chainsaw for homeowners. Thanks to sufficient cutting performance the saw makes light work of cutting firewood, light felling or limbing. Features X-Torq® engine technology for low emissions and Air Injection that keeps the filter clean. Low kickback cutting equipment for increased safety. Comes with SmartStart® technology that allows for easier starts.
Product Information
Features (7)
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort
Air Injection
Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life
Powerful and Efficient X-TORQ® Engine
Great power and efficiency
Separate Choke/Stop Switch Controls
Stop switch automatically resets when the choke is pulled out to help prevent accidental flooding
Two mass principle
Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Inertia chain brake
Reduces the likelihood of injury due to kickback
Specifications | Art No: 967861911 |
|---|---|
| Output shaft power | 1.4 kW |
| Weight (excl. cutting equipment) | 5.1 kg |
| Chain speed at max power | 16.8 m/s |
| Cylinder displacement | 38.2 cm³ |
| Fuel tank volume | 0.28 l |
| Sound pressure level at operators ear | 100.7 dB(A) |
| Bar length | 40 cm |
| Clutch engagement speed (±120) | 4250 rpm |
| Electrode gap | 0.5 mm |
| Equivalent vibration level (ahv, eq) front handle | 2.1 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 2.7 m/s² |
| Exhaust emissions (CO average) EU | 165 g/kWh |
| Exhaust emissions (CO average) EPA | 210 g/kWh |
| Exhaust emissions (HC average) EU | 42 g/kWh |
| Exhaust emissions (HC average) CARB | 42.04 g/kWh |
| Exhaust emissions (NOx average) EU | 2.3 g/kWh |
| Exhaust emissions (NOx average) EPA | 1.48 g/kWh |
| Fuel consumption | 428 g/kWh |
| Idling speed | 3000 rpm |
| Maximum power speed | 9000 rpm |
| Oil tank volume | 0.15 l |
| Product size height | 27.5 cm |
| Product size length | 74.6 cm |
| Product size width | 23.5 cm |
| Recommended bar length, max | 18 in |
| Recommended bar length, max | 45 cm |
| Recommended bar length, min | 14 in |
| Recommended bar length, min | 35 cm |
| Sound power level, guaranteed (LWA) | 113 dB(A) |
| Sound power level, measured | 100.7 dB(A) |
